Yes, a wall-mountable electrostatic center channel.
What makes the Focus ESL C18 a masterpiece of center channel design and engineering is its surprising ability to be wall-mounted. And while the Focus ESL C18 boasts a depth of just 9.6-inches when mounted flat on a wall, it is packed with technology that delivers the detailed audio you demand from a superior center channel loudspeaker.
The 7.5 x 18-inch Curvilinear Line Source (CLS) electrostatic panel, with its gentle horizontal curve, enhances output and extends the enveloping mid-range dispersion pattern. The design of the exterior grille matches the look of the MicroPerf Stators and bold AirFrame Blade seen on other models in the Masterpiece ESL Series, for a sophisticated and coordinated home theater system aesthetic.

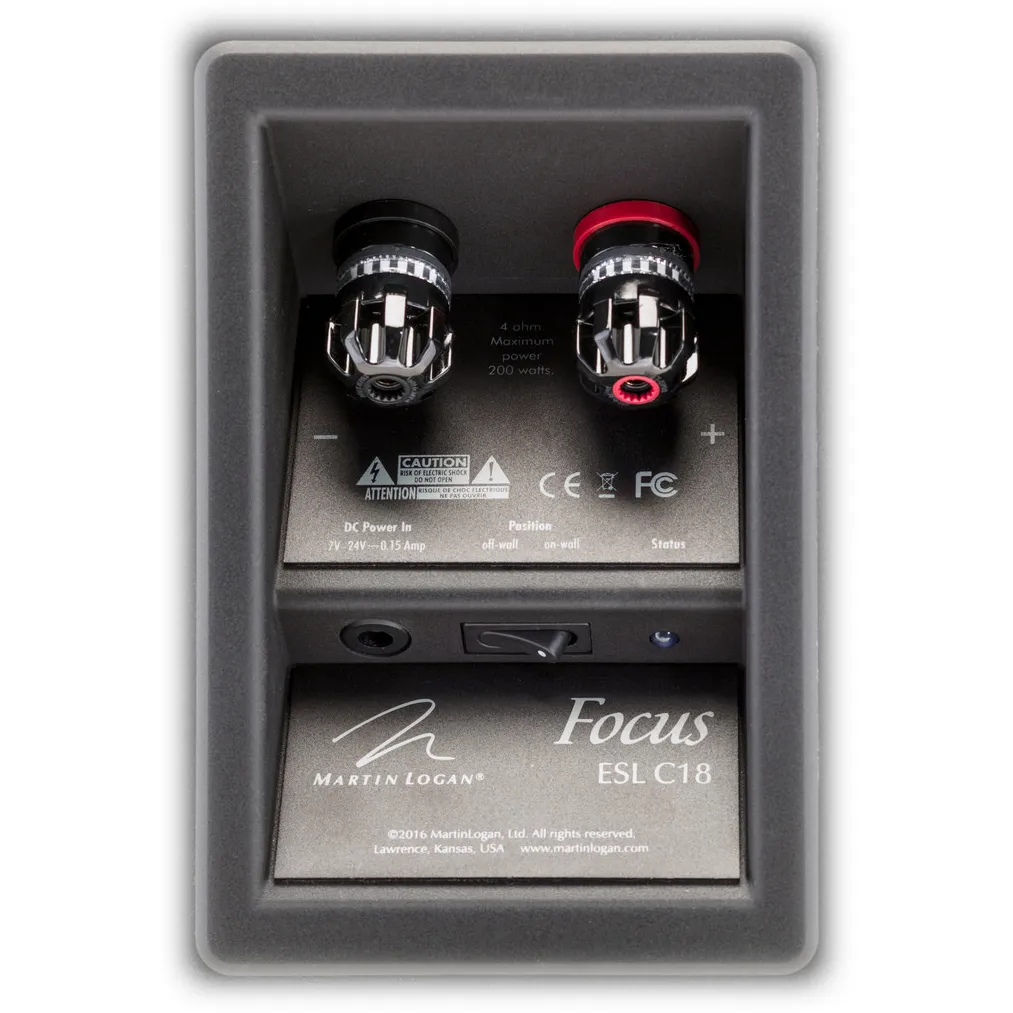

Premium WBT Binding Posts
Connect your electronics safely and securely using 5-Way audiophile WBT Binding Posts. Their pure copper connection plate is highly conductive and free from eddy current effects. These posts are insulated for shock protection, and fully damped against vibrations. They give you plenty of room for large-gauge professional speaker connections.
Precision-Built Advanced-Topology Vojtko Crossover
Vojtko Voiced, the advanced crossover in Focus ESL C18 add enhanced mid-range clarity to this artful composition. Carefully hand-built using only the finest polypropylene capacitors and air-core coils, the crossover employs MartinLogan’s proprietary Vojtko topology for vanishingly low distortion and seamless driver/ESL integration. This precision-tuned network preserves even the most microscopic sonic nuances while handling the full dynamics of any source.
Exclusive Folded Motion Tweeter
Situated just behind the electrostatic panel, fixed in a uniquely designed housing, sits a MartinLogan exclusive Folded Motion Tweeter. The low-mass diaphragm of the Folded Motion Tweeter minimizes distortion, while its short excursion length expedites lightning fast high frequency response. The 1 x 1.4-inch Folded Motion Tweeter in the Focus ESL C18 center channel speaker has a diaphragm area of 5.25 x 1.75-inches. The combined performance characteristics of the electrostatic panel and the Folded Motion Tweeter ensure precision and hyper-realistic front-stage blending.
This kind of mid- and high-frequency performance can only be supported by a foundation of tremendous low-end. So the Focus ESL C18 also features a passive array of twin 6.5-inch woofers, capable of deep bass reproduction down to 50Hz. Bass output can be tuned for any installation option with the acoustic contour switch.
Specs
|
Frequency Response
|
50–23,000 Hz ±3dB
|
|
Recommended Amplifier Power
|
50—400 watts per channel
|
|
Horizontal Dispersion
|
30°
|
|
Sensitivity
|
90 dB/2.83 volts/meter
|
|
Impedance
|
4 Ohms Compatible with 4, 6, or 8 Ohm rated amplifiers.
|
|
Crossover Frequency
|
470, 3000 Hz
|
|
High Frequency Transducer
|
1" x 1.4" (2.6cm x 3.6cm) Folded Motion Transducer with 5.25" x 1.75" (13.3cm x 4.4cm) diaphragm.
|
|
Mid Frequency Transducer
|
Patented CLS™ XStat™ electrostatic transducer » Panel Dimensions: 7.5" x 18" (19 x 45.7cm) » Radiating Area: 135 in² (868 cm²)
|
|
Low Frequency Transducer
|
Two 6.5" (16.5cm) cast basket, high excursion, rigid aluminum cone with extended throw drive assembly, non-resonance asymmetrical chamber format.
|
|
Components
|
Custom-wound audio transformer, air core coils, low DCR steel laminate coils, polyester capacitors
|
|
Audio Controls
|
Position: On-Wall / Off-Wall
|
|
Signal Inputs
|
WBT-0703Cu nextgen™ 5-way binding posts feature a filigree signal conductor made from gold plated, nickel free, non- ferromagnetic, pure copper for high conductivity and fully insulated. Free from eddy current effects.
|
|
Weight
|
50 lbs. (22.7 kg)
|
|
Dimensions (Table Mount)
|
9.6" x 43.2" x 9.2 " (24.4cm x 109.7cm x 23.4cm)
|
|
Dimensions (Installed On Wall, Flat Mount)
|
9.4" x 43.2" x 9.6" (23.9 cm x 109.7cm x 24.5cm)
|
|
Dimensions (Installed On Wall, Angled)
|
11.3" x 43.2 " x 11.5 " (28.8 cm x 109.7cm x 29.1 cm)
|
