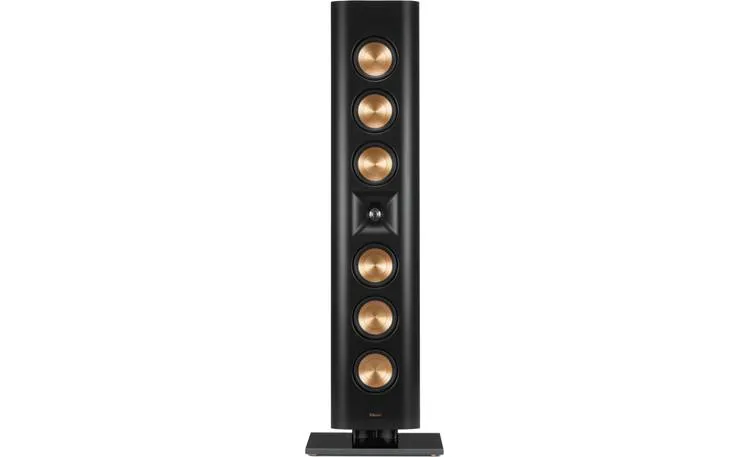

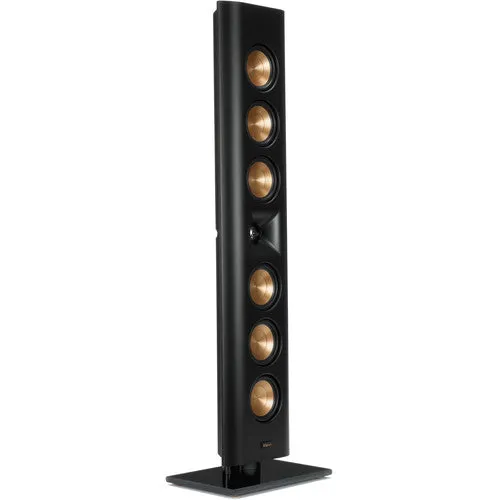

Designed for larger spaces, the Reference Premiere Designer On-Wall RP-640D brings the dynamic, detailed, powerful sound of the Reference Premiere box speakers to a slim, on-wall solution. The matte finish helps it blend more seamlessly with contemporary interior and electronics, making it a great sounding, great looking solution in a high performance home theater or media room where floor space is at a premium.
Warranty:
2-year manufacturer's warranty
Features:
- Slim On-Wall Solution Matches Today's Ultra-Flat TV's
- Reference Premiere Horn Loaded Acoustic Technology
- Horizontal and Vertical Mounting Options
- Single 1” Titanium Dome Linear Travel Suspension (LTS) tweeter
- Dual 3.5” Cerametallic Active Woofers and Quad 3.5” Cerametallic Passive Radiators
- Dual 4-Way Keyholes for secure on-wall mounting
- Magnetic Wrap-Around Grille
- Included glass base for table-top mounting
- Matte Black Painted Finish Blends Seamlessly into Today’s Modern Interiors
Video Review:
90 x 90° Tractrix Horn
The Tractrix horn geometry is designed to help improve high-frequency response and extension, enhance imaging and dynamics, and focus the high-frequency sound towards the listening area for natural sound.
Linear Travel Suspension (LTS) Titanium Tweeter
The LTS tweeter design is engineered to maximize dynamics for detailed performance.
Spun-Copper Cerametallic Woofers
The Cerametallic woofers are designed to maintain rigidity, using a lightweight construction for minimal cone breakup and distortion.

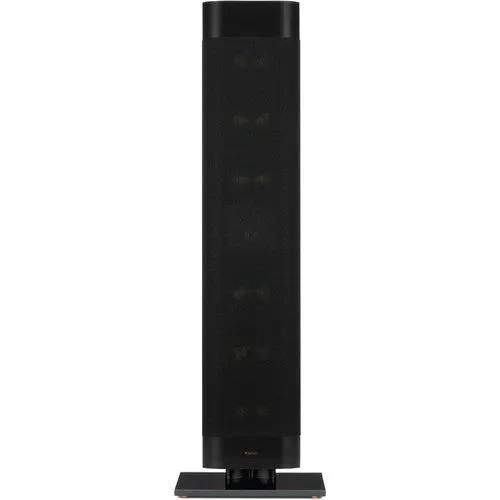

Wrap-Around Magnetic Grille
The front grille attaches magnetically to provide a simple change in aesthetics.
Table Mount Included

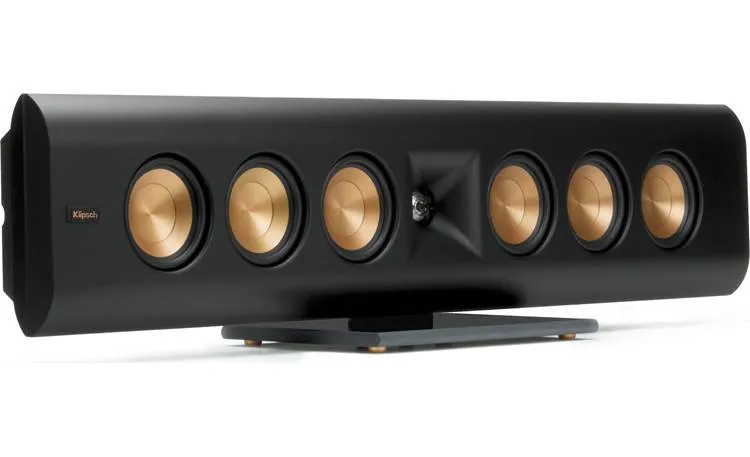

Dual four-way keyholes allow for easy wall mounting either vertically or horizontally, while the included glass base provides a tabletop or bookshelf option, also vertically or horizontally.
Technical Specifications:
| Frequency Response | 55Hz-25kHz /- 3dB |
| Sensitivity | 94dB @ 2.83V / 1m |
| Power Handling | 75W / 300W |
| Nominal Impedance | 8 Ohms Compatible |
| Crossover Frequency | 2200Hz |
| High Frequency Driver | 1” (2.54 cm) Titanium Dome LTS Tweeter with 90°x90° Tractrix Horn |
| Low Frequency Driver | Dual 3.5” (8.89 cm) Cerametallic Cone Active Woofers Quad 3.5” (8.89 cm) Cerametallic Cone Passive Radiators |
| Enclosure Material | ABS |
| Enclosure Type | Bass Reflex |
| Inputs | Single Binding Posts |
| Height | 28.5" (72.39 cm) |
| Width | 6" (15.24 cm) |
| Depth | 2.4" (6.10 cm) |
| Weight | 8 lbs (1.7 kg) |
| Finish | Matte Black Paint |
| Built From | 2017 |
