Superior Sound & Video:

KanexPro Extenders
Specifically Designed for
Professional Installations

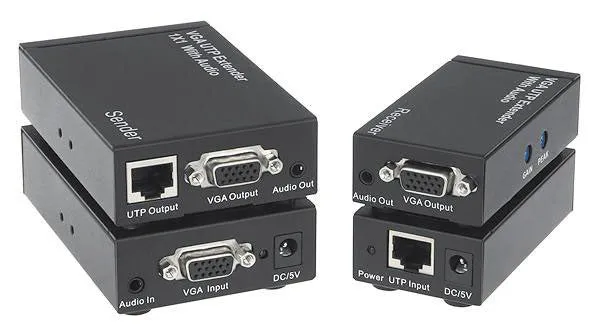

KanexPro VGAEXTX1 1x1 VGA w/Audio CAT5 Extender System (Trans & Rec)

The KanexPro VGA extender over a single CAT5e/6 cable is designed for routing high-resolution VGA signals and stereo audio over remote distances up to 1,000ft. (300m). Each receiver set features a separate gain and peaking rotary switch used in adjusting brightness and skew over long distances.

The 15-pin HD connectors are convenient and cost-effective for all input/ output connections supporting full bandwidth compatible from VGA to WUXGA graphics card resolutions and HDTV?s to projectors. In addition, each output performs a separate buffering to maintain signal integrity and reject noise interference.

• Extend high-resolution VGA signal with audio over a single Cat5E/6 cable up to 1,000 feet (300m)
• Adjust GAIN and PEAK levels to adapt for variable lengths of UTP cable on the receiver
• Supports maximum resolutions up to WUXGA (1920x1200@60Hz)
• Stereo Audio Input through 3.5mm jack
• CAT5e/6 Output via RJ-45 Jack
• Transmitter includes Local VGA Monitor Output w/ 3.5mm jack
• EDID Compliant
• Rack or under-desk mountable
• 5VDC external power supply included
