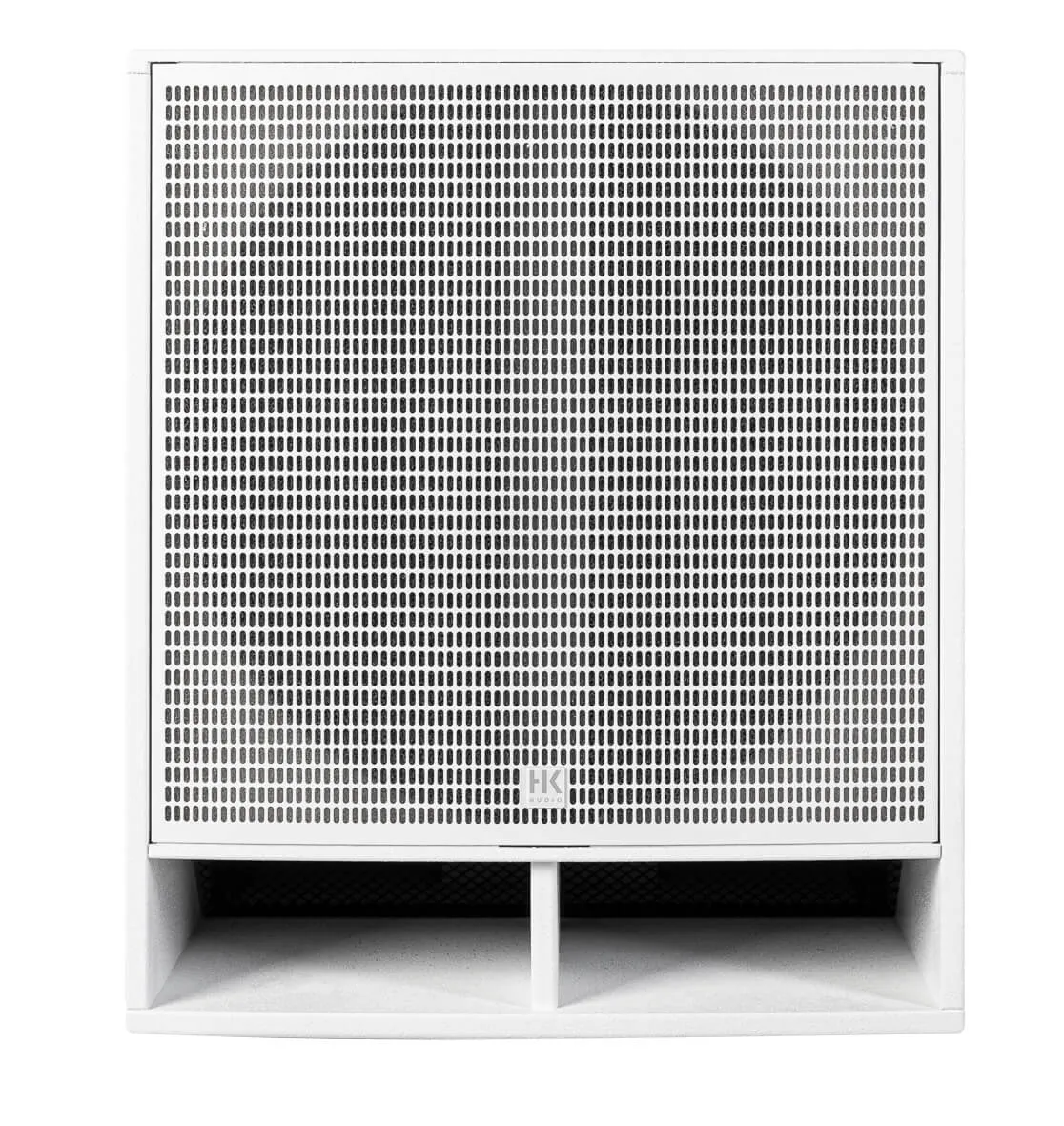

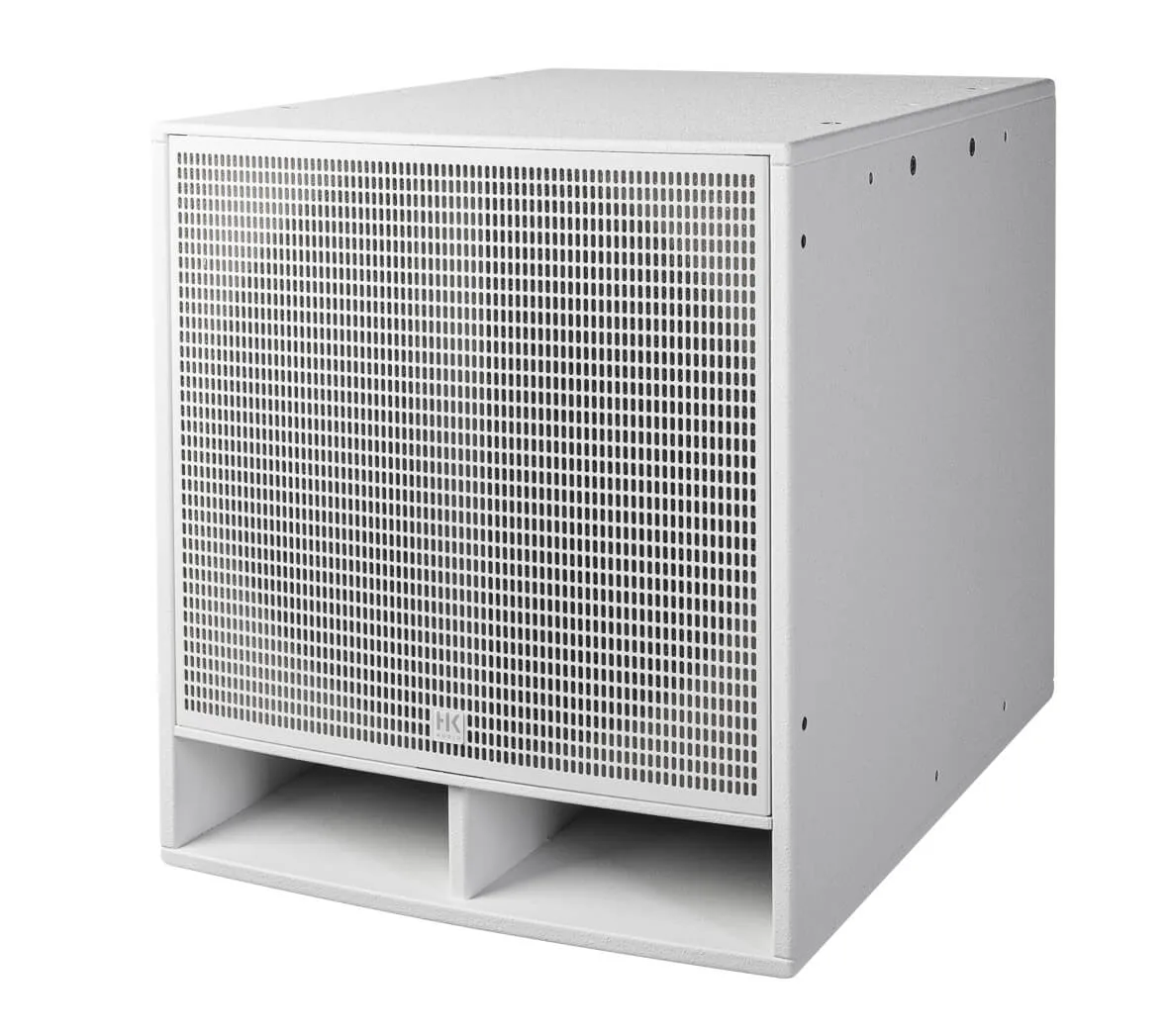

The FO S118 F is the flyable version of the particularly powerful FO S118 subwoofer. The 18″ woofer with a 3″ voice coil provides voluminous bass even for larger rooms and when the sound requires more noticeable boost in the lowest frequency ranges. The FO S118 F is an optimal complement for larger systems with FO 10, FO 12 and FO 15 loudspeakers. Despite the large membrane area, the FO S118 is compact and easy to integrate into various ambiences. Installation is simple and secure with the optionally available U-bracket or AP8 attachment points. Four M8 threads on the side and four M8 threads on the top are available for mounting. For aesthetic reasons, the FO S112 F does not have the cut-outs for cable routing or rubber feet. A secondary grille protects the bass reflex port from accidental or deliberate insertion of foreign objects. A ball-impact resistance certificate in line with DIN 18032-3 is provided for installations in sports facilities.
Specifications
| Characteristics | |
| Concept | Flyable passive subwoofer |
| Cabinet principle | Bass reflex |
| Power handling RMS | 1000 W |
| Power handling program | 2000 W |
| Power handling peak | 4000 W |
| Nominal impedance (According to EN 60268-5 (minimum value not less than 80% of nominal value)) | 8 ohms |
| Max. SPL average (1 m, 10 % THD @ 40 Hz - 100 Hz, (EN 60268-21), full space) | 124 dB |
| Max. SPL peak (1 m, 10 % THD @ 70 Hz, full space) | 129 dB |
| Sensitivity 1 W/1 m (40 Hz - 100 Hz, full space) | 96 dB |
| Frequency range -6 dB | 41 Hz - crossover frequency |
| Frequency range -10 dB | 38 Hz - crossover frequency |
| Dispersion angle -6 dB | omnidirectional |
| Certifications | |
| Ball impact resistance (DIN 18032-3) | certified (MPA University Stuttgart) |
| IP protection class (EN 60529) | not specified |
| Components | |
| Low frequency | 1x 18" Beyma cone speaker with ferrite magnet and 3" voice coil |
| Crossover | no internal crossover |
| Connections | |

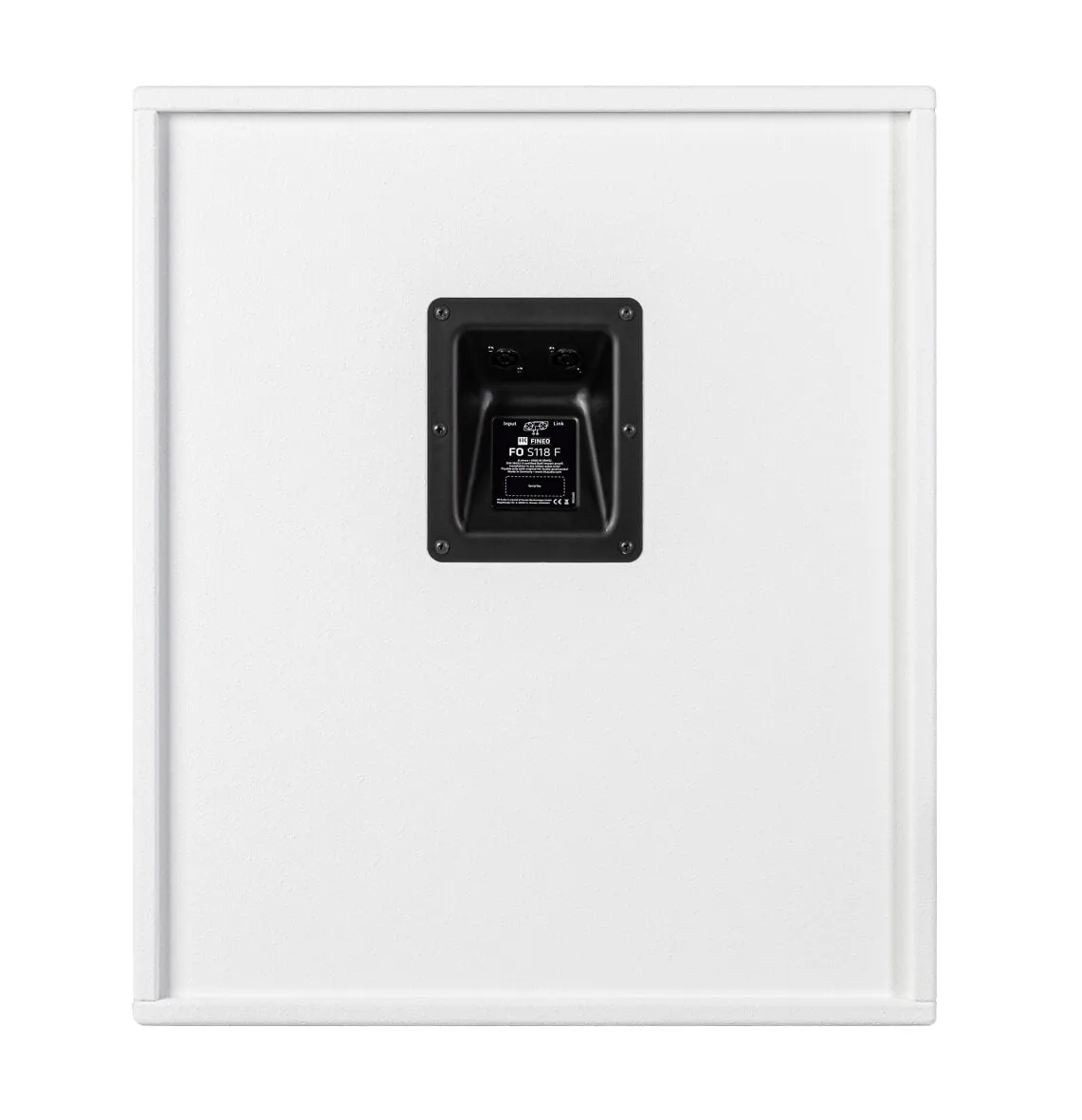

| Input | 1 x NL4 Speakon |
| Output/parallel output | 1 x NL4 Speakon |
| Pin assignment | 2 /- (input/parallel output), 1 /- (wired through) |
| Amping/DSP Presets | |
| Lab.Gruppen | IPX |
| LEA Professional | Sharkware |
| Amping/Filter Sheets | |
| Filter specifications in tabular form for frequency response equalization Without limiter specifications | Biamp Tesira BSS Lab.gruppen Lake Linea Research Marani Powersoft QSC Q-SYS Symetrix |
| Mechanical data | |
| Cabinet material | MDF |
| Cabinet surface | 1-component acrylic enamel |

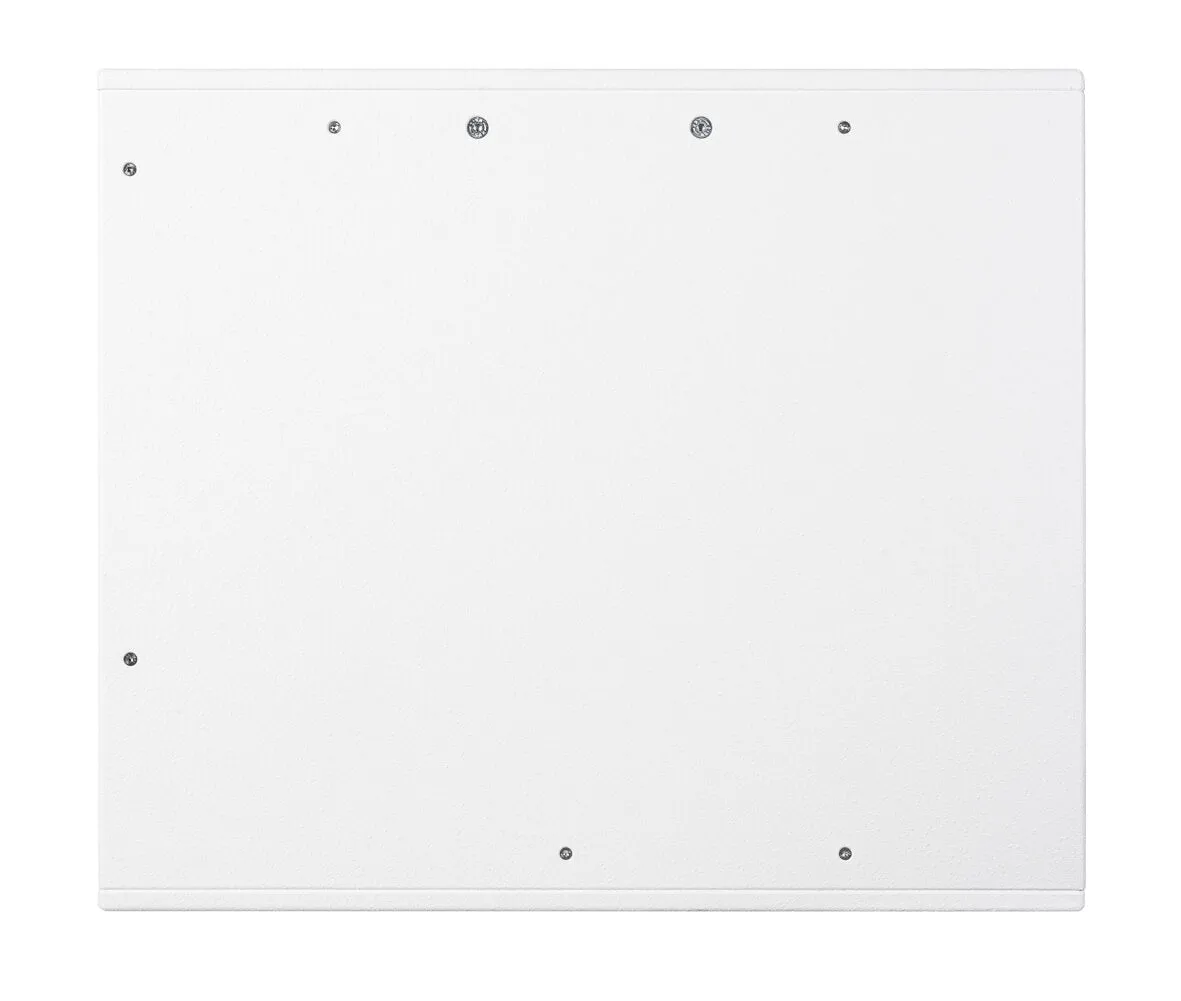

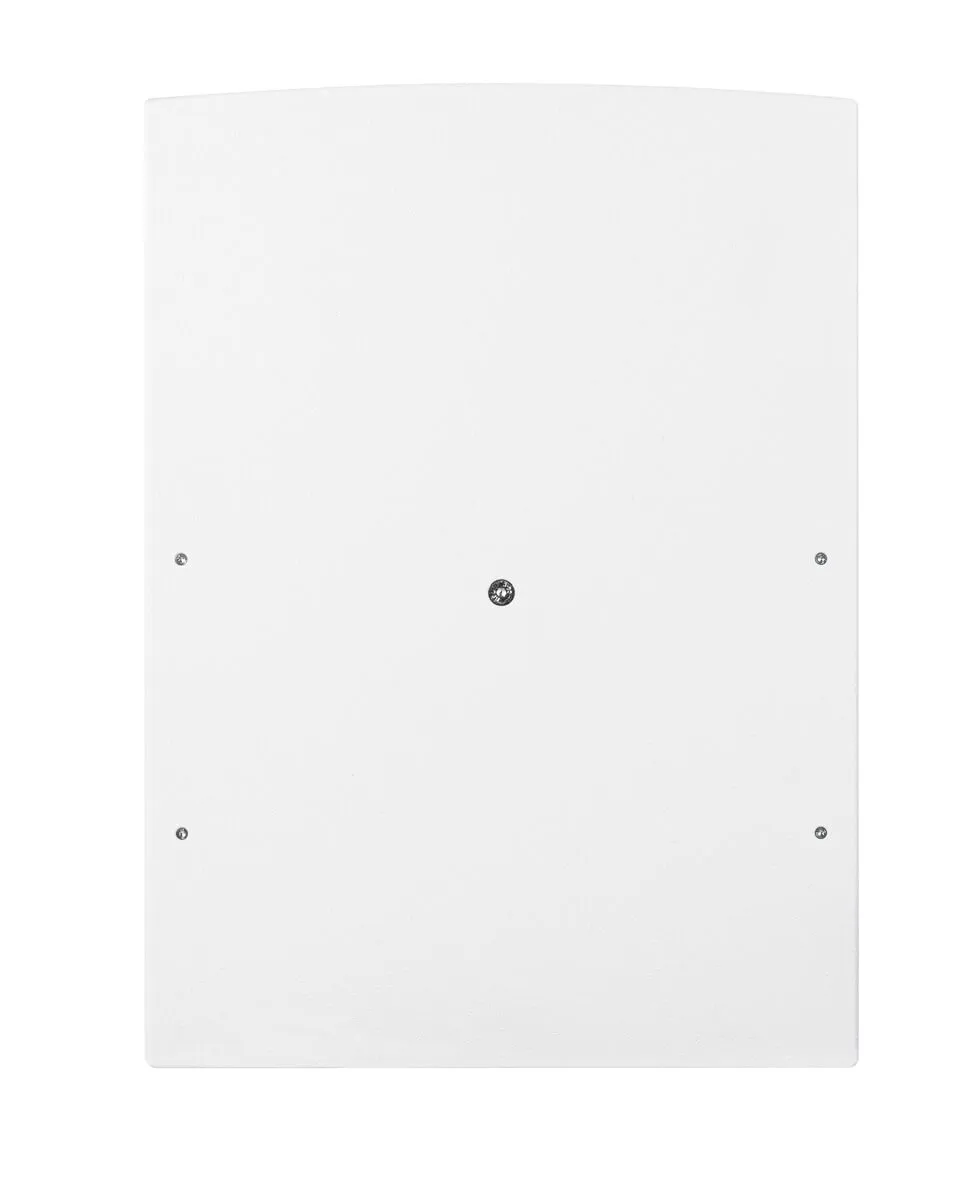

| Mounting points | 4 x M8 lateral, 4 x M8 lid |
| Color | Jet black (RAL 9005), signal white (RAL 9003) or special color according to catalog |
| Front grille | Steel front grille with anticorrosive coating, backed acoustic foam and additional steel reinforcements |
| Secondary grille | Insertion protection of the bass reflex port made of coated expanded metal |
| Cable routing | n/a |
| Feet | n/a |
| Accessories | U-bracket, AP-8 |
| Dimensions (WxHxD) | 520 x 608 x 721 mm 20.47 x 23.94 x 28.39 inch |
| Weight | 40.5 kg 89.29 Ibs |
