Product Details
＋

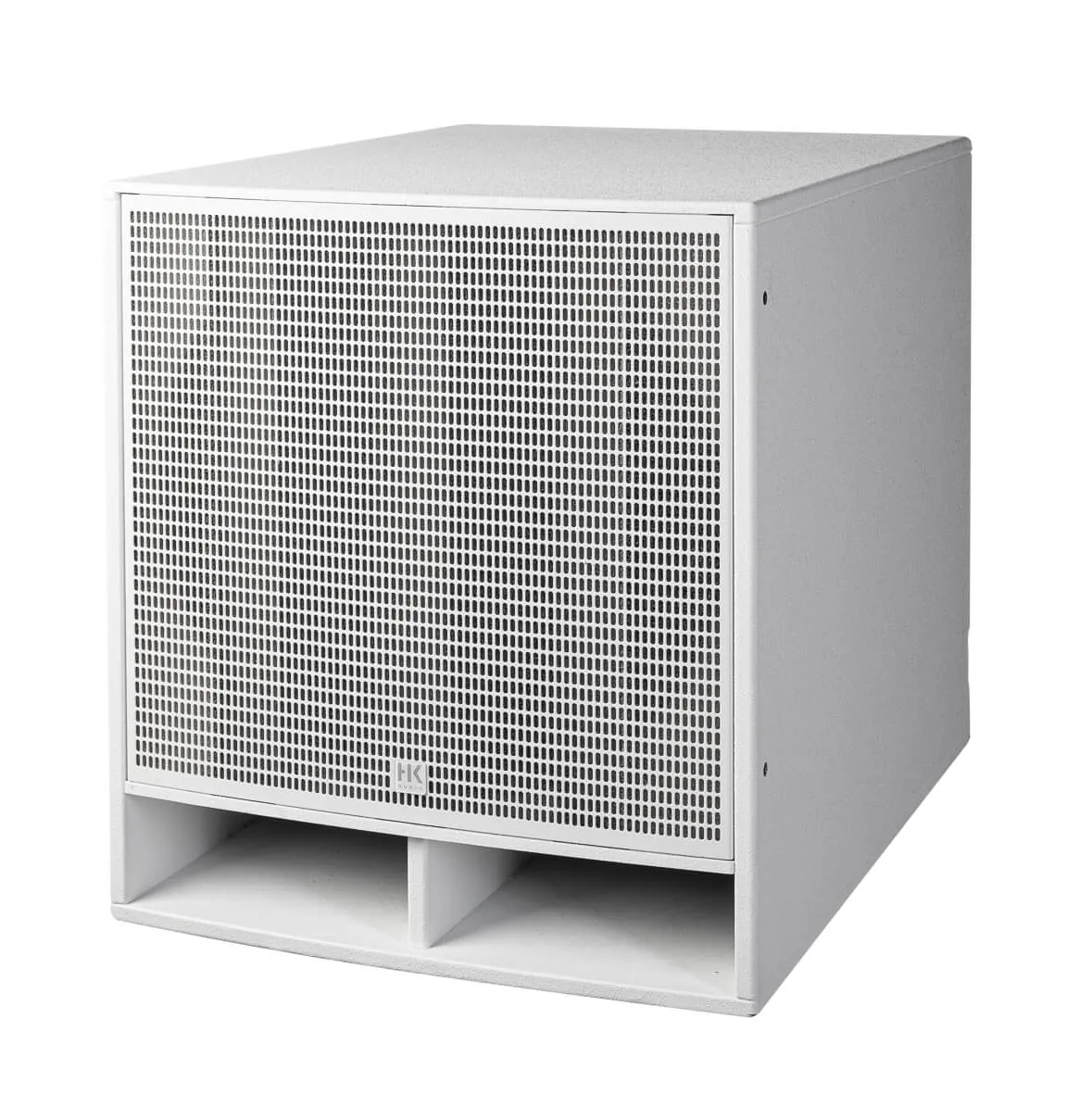

Particularly powerful and high-impact subwoofer with 18″ woofer and 3″ voice coil. Voluminous bass even for larger rooms and when the sound requires more noticeable boost in the lowest frequency ranges. The optimal complement for larger systems with FO 10, FO 12 and FO 15 loudspeakers. Despite the large membrane area, the FO S118 is compact and easy to integrate into various ambiences. Cable routing close to the wall is facilitated by the milled openings on the back. A secondary grille protects the bass reflex port from accidental or deliberate insertion of foreign objects. A ball-impact resistance certificate in line with DIN 18032-3 is provided for installations in sports facilities.
Specifications
| Characteristics | |
| Concept | Passive subwoofer |
| Cabinet principle | Bass reflex |
| Power handling RMS | 1000 W |
| Power handling program | 2000 W |
| Power handling peak | 4000 W |
| Nominal impedance (According to EN 60268-5 (minimum value not less than 80% of nominal value)) | 8 ohms |
| Max. SPL average (1 m, 10 % THD @ 40 Hz - 100 Hz, (EN 60268-21), full space) | 124 dB |
| Max. SPL peak (1 m, 10 % THD @ 70 Hz, full space) | 129 dB |
| Sensitivity 1 W/1 m (40 Hz - 100 Hz, full space) | 96 dB |
| Frequency range -6 dB | 41 Hz - crossover frequency |
| Frequency range -10 dB | 38 Hz - crossover frequency |
| Dispersion angle -6 dB | omnidirectional |
| Certifications | |
| Ball impact resistance (DIN 18032-3) | certified (MPA University Stuttgart) |
| IP protection class (EN 60529) | not specified |
| Components | |
| Low frequency | 1x 18" Beyma cone speaker with ferrite magnet and 3" voice coil |
| Crossover | no internal crossover |
| Connections | |

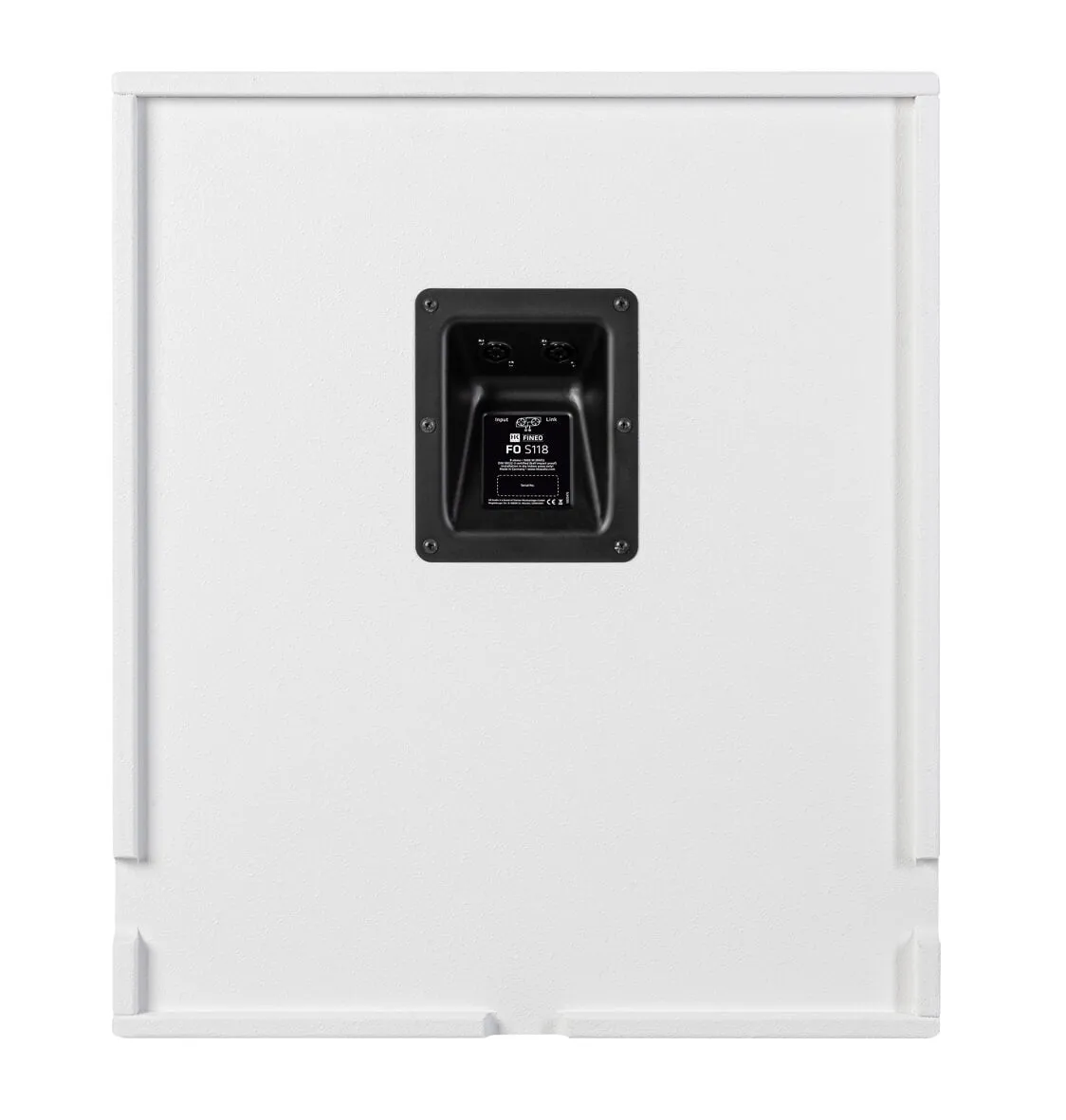

| Input | 1 x NL4 Speakon |
| Output/parallel output | 1 x NL4 Speakon |
| Pin assignment | 2 /- (input/parallel output), 1 /- (wired through) |
| Amping/DSP Presets | |
| Lab.Gruppen | IPX |
| LEA Professional | Sharkware |
| Amping/Filter Sheets | |
| Filter specifications in tabular form for frequency response equalization Without limiter specifications | Biamp Tesira BSS Lab.gruppen Lake Linea Research Marani Powersoft QSC Q-SYS Symetrix |
| Mechanical data | |
| Cabinet material | MDF |
| Cabinet surface | 1-component acrylic enamel |
| Color | Jet black (RAL 9005), signal white (RAL 9003) or special color according to catalog |

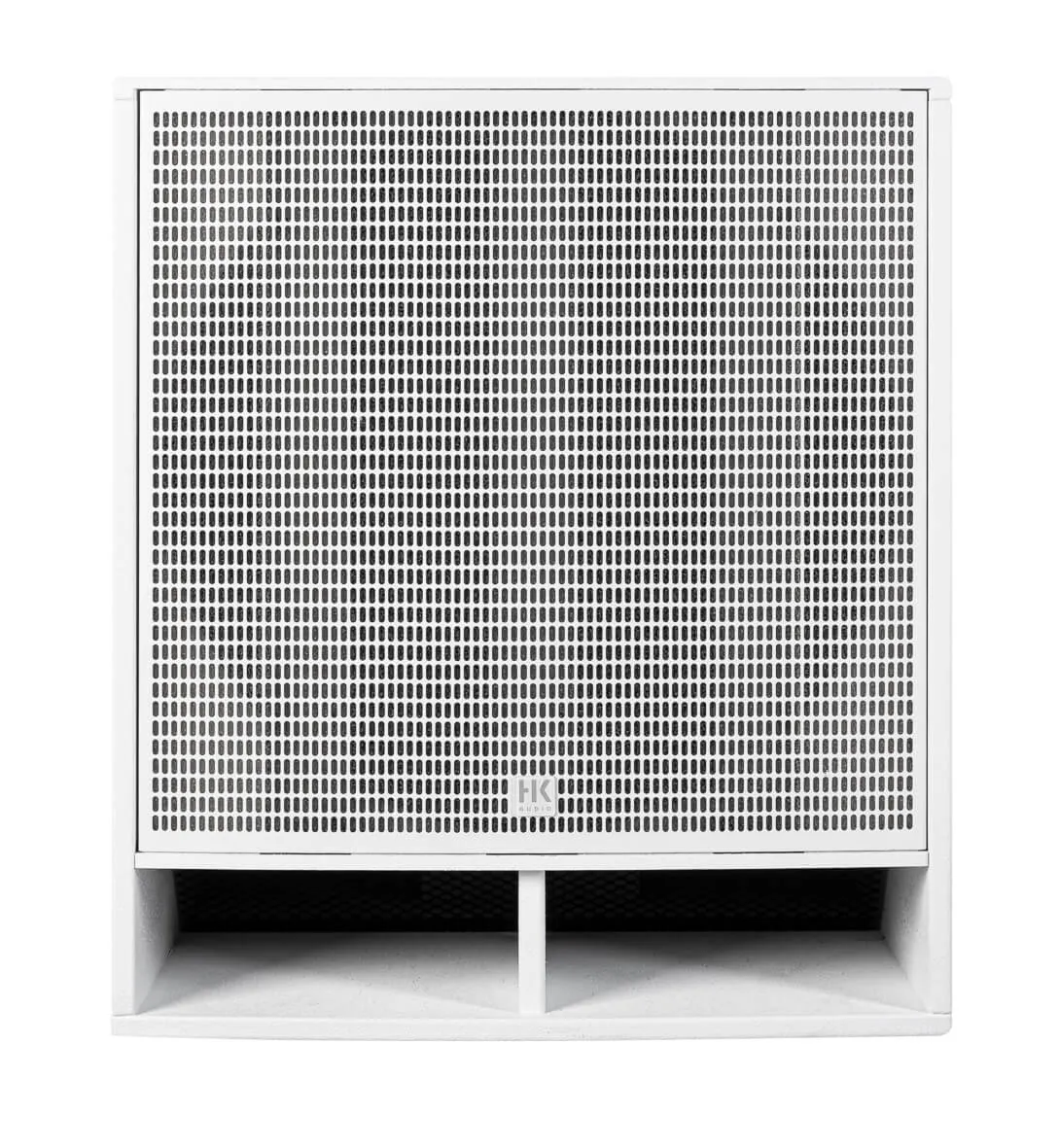

| Front grille | Steel front grille with anticorrosive coating, backed acoustic foam and additional steel reinforcements |
| Secondary grille | Insertion protection of the bass reflex port made of coated expanded metal |
| Cable routing | Cutouts on the back for cable routing close to a wall to the left, right or below |
| Feet | 4 x rubber foot on bottom |
| Dimensions (WxHxD) | 520 x 608 x 721 mm 20.47 x 23.94 x 28.39 inch |
| Weight | 39.3 kg 86.64 Ibs |
