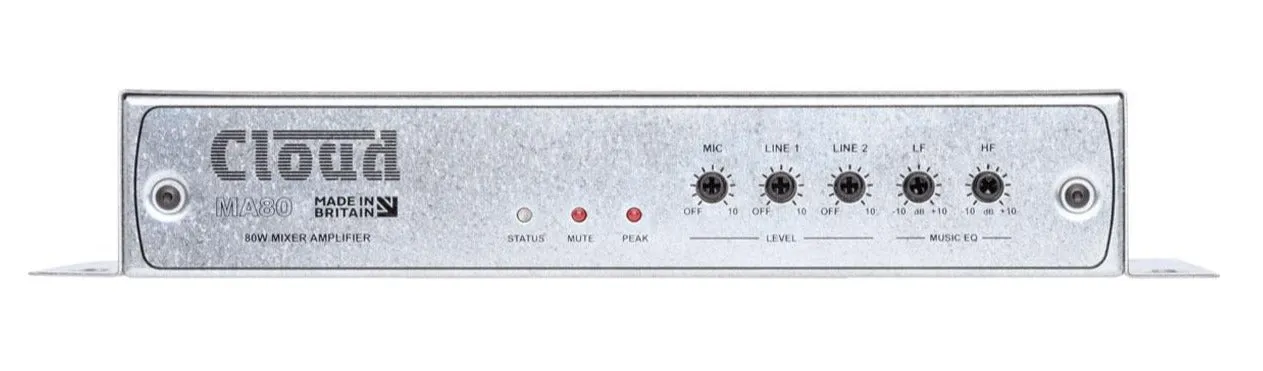

The MA80 is a compact Mini Amplifier providing 80W Mono Output at 4Ω (low impedance). Designed for integration into commercial audio installations and AV systems where de-centralisation of the system component is an advantage. It is intended as an "install and forget" component and is small enough to be fitted into a wall or ceiling void, or directly adjacent to a projector, flat screen or loudspeaker.

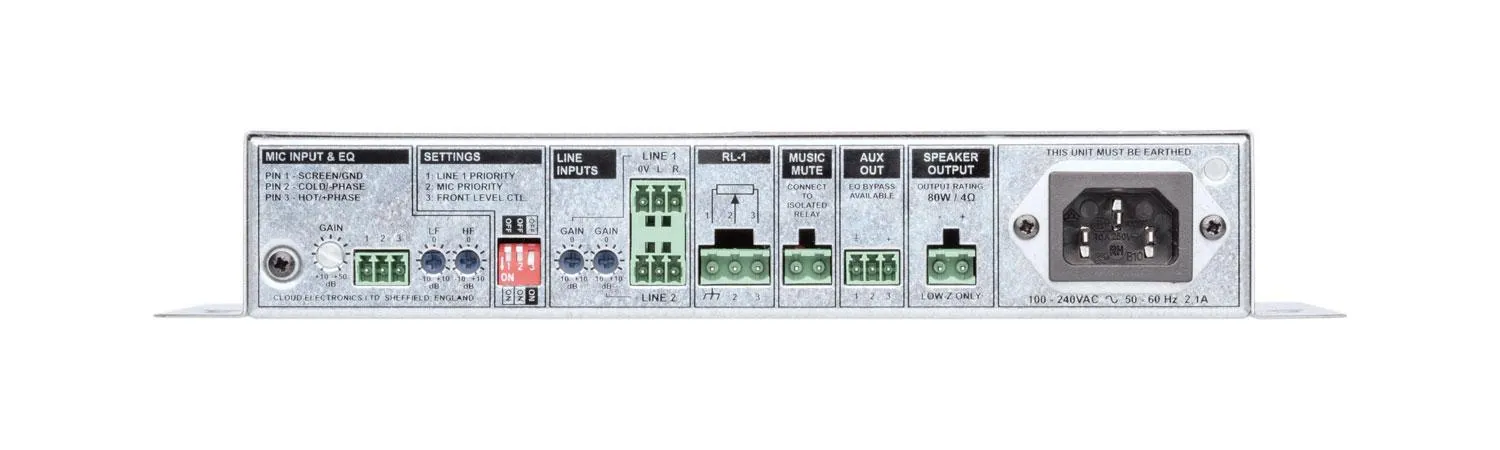

Fitted with a Microphone Input with EQ and input gain adjustment, a further two line inputs, an RL-1 remote wall plate connection, music mute connection and dip switch settings providing Line 1 priority and mic priority switching in addition to switching on/off of the RL-1 functionality.
The MA80 is powered internally via 100-240V SMPS.
Specifications
- 1 x 80W Mono 4ohm Output (<1% THD @ Full Output)
- Line 1 over Line 2 Priority
- APD - Auto Wake & Hibernation
- Mic Input with EQ and Input Gain
- Music EQ Plus Optional EQ Card
- Mic Output Level Control Priority
- Music Mute
- RL-1 Remote Control Interface
- Aux Out
- Dynamic Clip, Thermal & Short Protection
- Integrated Universal Power Supply
- Variants: EK, AUS, NA
