Product Details
＋

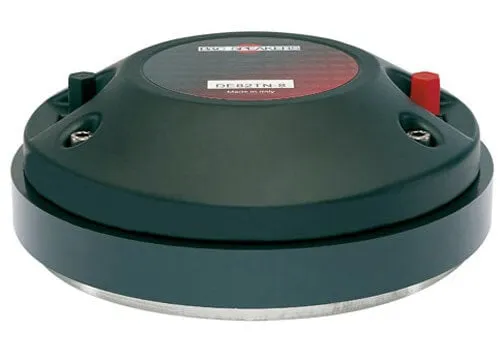

High frequency 1.4" throat bolt on compression driver.
|
SPECIFICATIONS Nominal Diameter: 6.7", 170mm Nominal Impedance: 8 ohms Nominal Power: 110 W rms, 220 W program Freq. Response: 0.5 kHz-18.0 kHz Sensitivity: 107 db 1w/1m Voice Coil Diameter: 3.0", 76mm Recommended X-over: 1.0 kHz MOUNTING INFORMATION Overall Diameter: 6.7", 170mm Number of Mounting Holes: 4 Four M6 holes 90° on 102 mm (4 in) diameter Depth: 2.5", 64mm CONSTRUCTION -1.4" throat with Titanium diaphragm -Ferrite magnet with Aluminum voice coil -Replacement Diaphragms: MMD3ATN8 |
