Product Details
＋
This is a special order item. Once an order has been placed we will order in this product for you after payment has been received. Order will be held until all items are ready to ship.

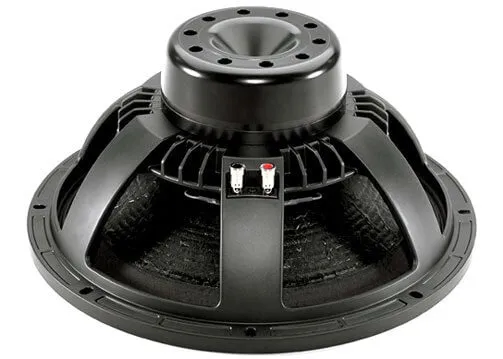

15" high efficiency Neodymium subwoofer.
|
SPECIFICATIONS Nominal Diameter: Nominal Impedance: Nominal Power: Freq. Response: Sensitivity: Voice Coil Diameter: |
15", 381mm 8 ohms 1000w rms, 2000w program 35 Hz-1.5 kHz 97 db 1w/1m 4", 102mm |
|
MOUNTING INFORMATION Overall Diameter: Baffle Hole Diameter: Mounting Hole BCD: Depth: |
15.5", 393mm 13.9", 354mm 14.7", 374mm 7.1", 181mm |
|
T/S PARAMETERS Fs: Re: Le: Qms: Qes: Qts: Vas: Xmax: |
33.0 Hz 5.1 ohms 1.9mH 4.3 0.23 0.22 139 L, 4.9 cuft 9mm |
|
CONSTRUCTION -Cast basket -Neodymium magnet with vented voice coil |
