Product Details

12" high efficiency low frequency woofer.

SPECIFICATIONS
Nominal Diameter: 12", 305mm
Nominal Impedance: 8 ohms
Nominal Power: 500w rms, 1000w program

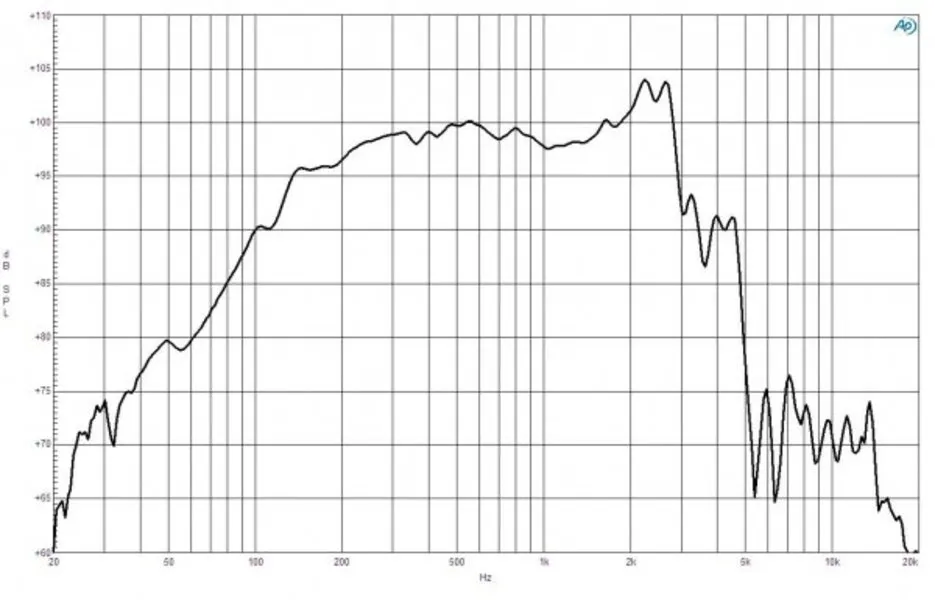

Freq. Response: 55 Hz-3.0 kHz
Sensitivity: 100 db 1w/1m
Voice Coil Diameter: 3.0", 76mm

MOUNTING INFORMATION
Overall Diameter: 12.4", 315mm
Baffle Hole Diameter: 11.1", 279mm
Mounting Hole BCD: 11.7", 297mm
Depth: 5.79", 147mm
T/S PARAMETERS
Fs: 54.0 Hz
Re: 5.1 ohms
Le: 1.4mH
Qms: 3.8
Qes: 0.18
Qts: 0.18
Vas: 45 L, 1.6 cuft
Xmax: 7mm

CONSTRUCTION
-Cast basket
-Ceramic ring magnet with copper voice coil
Recone Kit: RCK12FW768

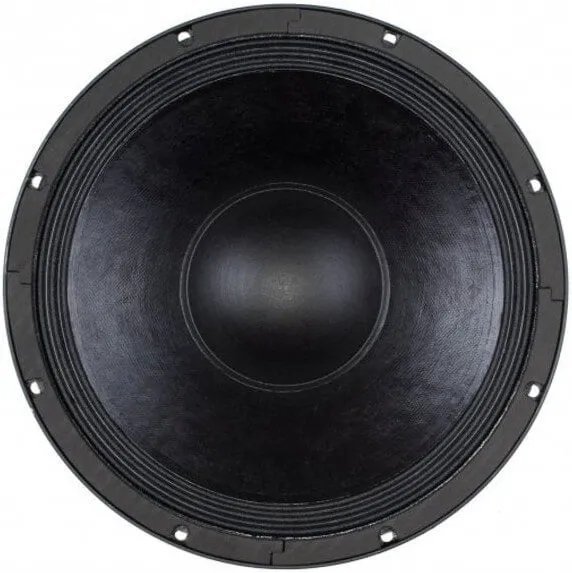

B&C 12FW76 - 8 ohm 12" 500W Ferrite 3.0" Voice Coil Woofer
  • DefaultTitle

$ 60.09

$ 46.22
