Product Details
＋

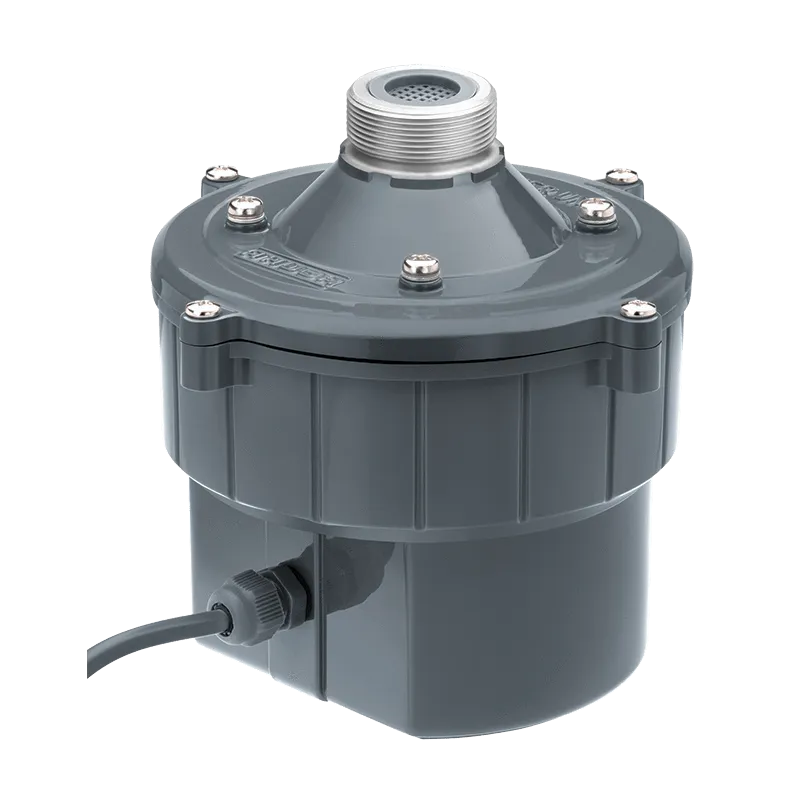

AU-50®XT
50W / 100V- Weatherproof and rugged construction.
- High SPL, crisp penetrating sound.
- Voice coils precision-wound on an aluminium bobbin for efficient heat dissipation.
- Models AU-50XT have a built-in 100V transformer with easily selectable power taps/impedance by changing the position of the rotary switch at the rear.
- Degree of protection IP 66 provided, when mounted on a reflex horn, against foreign particles such as dust and jets of water thus making them ideal for outdoor use. Meets EN 60529.
Specification
|
Input Power |
50W RMS/70W Max. |
|
Impedance/Power Taps |
On 100V Line 200„¦/50W, 250„¦/40W 500„¦/20W, 1k„¦/10W 2k„¦/5W |
|
Frequency Response |
160-7,000Hz |
|
SPL at 1kHz |
113dB/1W/1m, 130dB/50W/1m |
|
Temperature Range |
-30°to 70°C |
|
Throat Coupling |
1-3/8€� - 18TPI, Throat Couple No.1 |
|
Dimensions |
ø150 x H143 mm |
|
Weight |
2.47kg |
|
Material |
Die-cast Aluminium Acoustic Head (Flange) |
